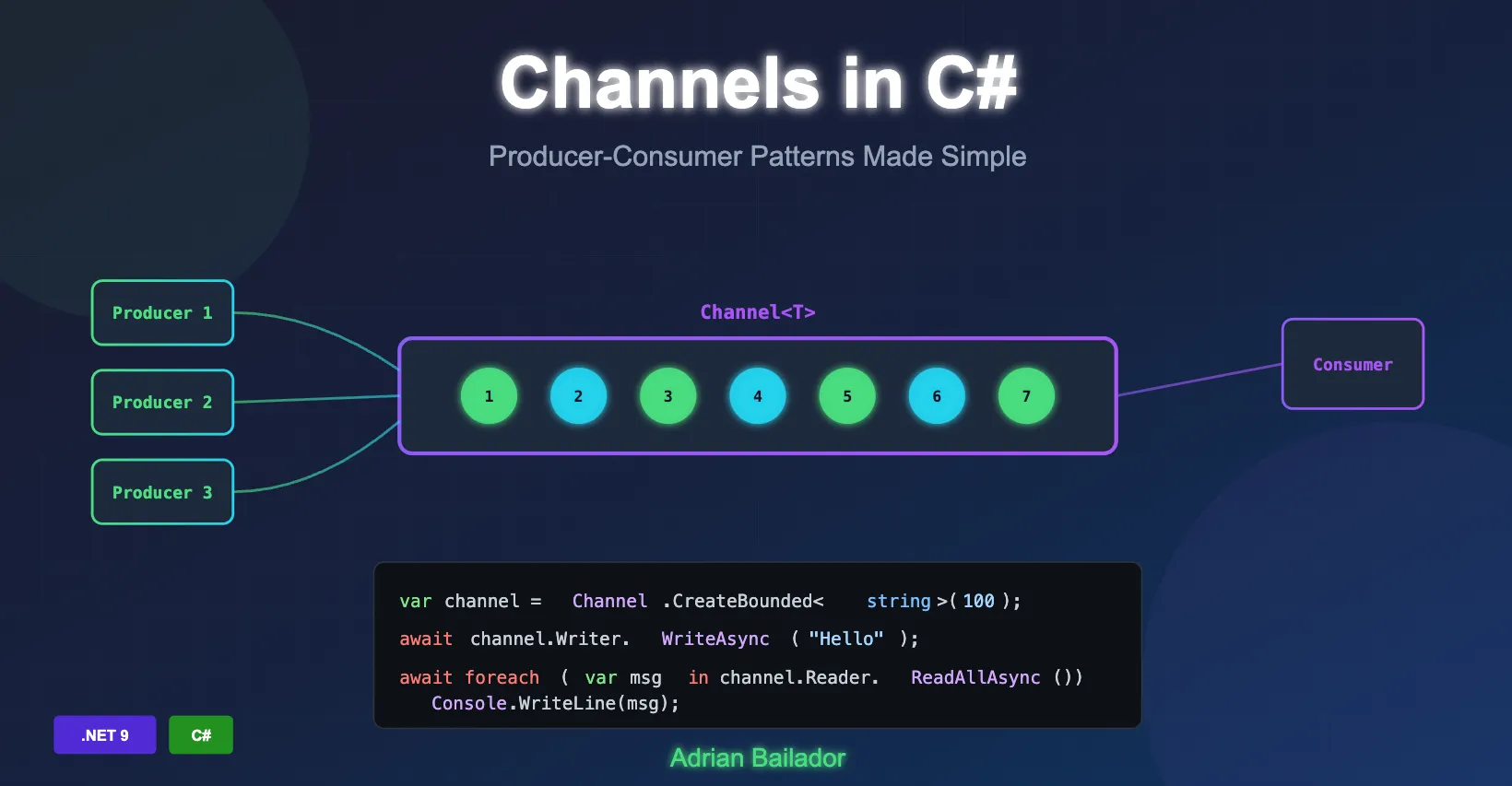

Channels in C#

Modern applications frequently need to handle concurrent data processing, where one or more producers generate data whilst consumers process it. The System.Threading.Channels namespace provides a powerful, thread-safe mechanism for implementing these producer-consumer patterns without the complexity of manual synchronisation.

What Are Channels?

Channels are a high-level abstraction for passing data between producers and consumers asynchronously. Think of a channel as a thread-safe queue that allows multiple threads to send and receive messages without requiring external locking or synchronisation mechanisms.

The key components of a channel are:

• Writer: Pushes data into the channel
• Reader: Pulls data from the channel
• Channel: The conduit that manages the data flow between writers and readers

Unlike traditional concurrent collections, channels are designed specifically for async/await patterns and provide built-in support for completion signalling and backpressure management.

When Should You Use Channels?

Channels are ideal for scenarios where:

• You need to decouple producers from consumers
• Multiple threads or tasks need to communicate safely
• You want to implement background processing pipelines
• You require backpressure to prevent system overload
• You need an in-memory alternative to message queues within a single application

Channels are particularly well-suited for streaming events, processing background tasks, and building high-throughput data pipelines.

Channel Types: Bounded vs Unbounded

The Channel static class provides factory methods for creating two types of channels:

Unbounded Channels

An unbounded channel has no capacity limit and accepts as many messages as memory allows:

var channel = Channel.CreateUnbounded<string>();

Unbounded channels are simpler to use but carry risk: if producers generate data faster than consumers can process it, memory usage can grow unboundedly.

Bounded Channels

A bounded channel has a fixed maximum capacity. When the capacity is reached, the channel applies backpressure to control the flow:

var channel = Channel.CreateBounded<string>(new BoundedChannelOptions(100)
{
    FullMode = BoundedChannelFullMode.Wait
});

Bounded channels provide better resource management and are generally preferred for production scenarios.

Understanding BoundedChannelFullMode

When a bounded channel reaches capacity, the FullMode property determines what happens:

Choosing the right mode depends on your use case:

• Wait: Best for background tasks where every message matters
• DropOldest: Useful when only the latest data is relevant (e.g., real-time telemetry)
• DropNewest: Rarely used, but can preserve historical data
• DropWrite: When losing occasional new messages is acceptable

You can also register a callback to observe dropped items:

var channel = Channel.CreateBounded(
    new BoundedChannelOptions(10)
    {
        FullMode = BoundedChannelFullMode.DropOldest
    },
    droppedItem => Console.WriteLine($"Dropped: {droppedItem}")
);

Basic Producer-Consumer Pattern

Here’s a fundamental example demonstrating the producer-consumer pattern:

using System.Threading.Channels;

var channel = Channel.CreateUnbounded<int>();

// Producer task
var producer = Task.Run(async () =>
{
    for (int i = 0; i < 10; i++)
    {
        await channel.Writer.WriteAsync(i);
        Console.WriteLine($"Produced: {i}");
        await Task.Delay(100);
    }
    channel.Writer.Complete();
});

// Consumer task
var consumer = Task.Run(async () =>
{
    await foreach (var item in channel.Reader.ReadAllAsync())
    {
        Console.WriteLine($"Consumed: {item}");
    }
});

await Task.WhenAll(producer, consumer);

Key points to note:

1. WriteAsync adds items to the channel asynchronously
2. ReadAllAsync provides an async enumerable for consuming items
3. Complete() signals that no more items will be written
4. Both operations are non-blocking and thread-safe

Writer and Reader APIs

Writer Methods

Reader Methods

Integrating Channels with ASP.NET Core

Channels work excellently with ASP.NET Core’s dependency injection and background services. Here’s a practical implementation:

Registering the Channel

builder.Services.AddSingleton(Channel.CreateBounded<WorkItem>(
    new BoundedChannelOptions(100)
    {
        FullMode = BoundedChannelFullMode.Wait,
        SingleReader = true,
        SingleWriter = false
    }));

Background Service Consumer

public class WorkItemProcessor : BackgroundService
{
    private readonly Channel<WorkItem> _channel;
    private readonly ILogger<WorkItemProcessor> _logger;

    public WorkItemProcessor(
        Channel<WorkItem> channel,
        ILogger<WorkItemProcessor> logger)
    {
        _channel = channel;
        _logger = logger;
    }

    protected override async Task ExecuteAsync(CancellationToken stoppingToken)
    {
        _logger.LogInformation("Work item processor starting");

        await foreach (var workItem in _channel.Reader.ReadAllAsync(stoppingToken))
        {
            try
            {
                await ProcessWorkItemAsync(workItem, stoppingToken);
            }
            catch (Exception ex)
            {
                _logger.LogError(ex, "Error processing work item {Id}", workItem.Id);
            }
        }
    }

    private async Task ProcessWorkItemAsync(WorkItem item, CancellationToken ct)
    {
        _logger.LogInformation("Processing work item {Id}", item.Id);
        await Task.Delay(100, ct); // Simulate work
        _logger.LogInformation("Completed work item {Id}", item.Id);
    }
}

API Endpoint Producer

app.MapPost("/api/work", async (
    WorkItem workItem,
    Channel<WorkItem> channel) =>
{
    await channel.Writer.WriteAsync(workItem);
    return Results.Accepted();
});

Channel Options for Performance Tuning

Both bounded and unbounded channels support options that can improve performance in specific scenarios:

var options = new BoundedChannelOptions(100)
{
    // Set true when only one task reads from the channel
    SingleReader = true,

    // Set true when only one task writes to the channel
    SingleWriter = false,

    // Allows synchronous continuations for better performance
    // but can cause stack dives in some scenarios
    AllowSynchronousContinuations = false,

    // Behaviour when channel is full
    FullMode = BoundedChannelFullMode.Wait
};

Setting SingleReader and SingleWriter appropriately allows the channel implementation to use optimised code paths, improving throughput.

Best Practices

Always Use Async Methods

Channels are designed for async code. Always use await when writing or reading to avoid blocking threads:

// Good
await channel.Writer.WriteAsync(data, cancellationToken);
await foreach (var item in channel.Reader.ReadAllAsync(cancellationToken))
{
    // Process item
}

// Avoid unless you have a specific reason
channel.Writer.TryWrite(data);  // Synchronous, may lose data

Always Use Cancellation Tokens

Pass cancellation tokens to allow graceful shutdown:

await channel.Writer.WriteAsync(item, cancellationToken);
await channel.Reader.ReadAsync(cancellationToken);

Signal Completion

Always call Complete() on the writer when finished producing:

try
{
    // Produce items
}
finally
{
    channel.Writer.Complete();
}

Handle Exceptions Properly

Use TryComplete(Exception) to propagate errors to consumers:

try
{
    await ProduceItemsAsync(channel.Writer, cancellationToken);
    channel.Writer.Complete();
}
catch (Exception ex)
{
    channel.Writer.TryComplete(ex);
}

Prefer Bounded Channels in Production

Unless you have a specific reason for unbounded channels, use bounded channels to prevent memory issues:

// Production-ready configuration
var channel = Channel.CreateBounded<T>(new BoundedChannelOptions(capacity)
{
    FullMode = BoundedChannelFullMode.Wait,
    SingleReader = true
});

Channels vs Other Approaches

Channels offer a sweet spot between simplicity and power, providing excellent performance for in-memory producer-consumer scenarios whilst maintaining a clean, async-friendly API.

Conclusion

System.Threading.Channels provides a robust foundation for building concurrent applications in .NET. By understanding the differences between bounded and unbounded channels, choosing appropriate full mode behaviours, and following best practices for async programming, you can create efficient, scalable producer-consumer systems.

The key takeaways are:

• Use bounded channels with appropriate capacity for production workloads
• Choose FullMode based on whether losing messages is acceptable
• Always use async methods and cancellation tokens
• Signal completion when production is finished
• Consider SingleReader/SingleWriter options for performance optimisation

Start incorporating channels into your applications today to simplify concurrent programming and improve your application’s throughput and responsiveness.
